Welded Mesh Fence

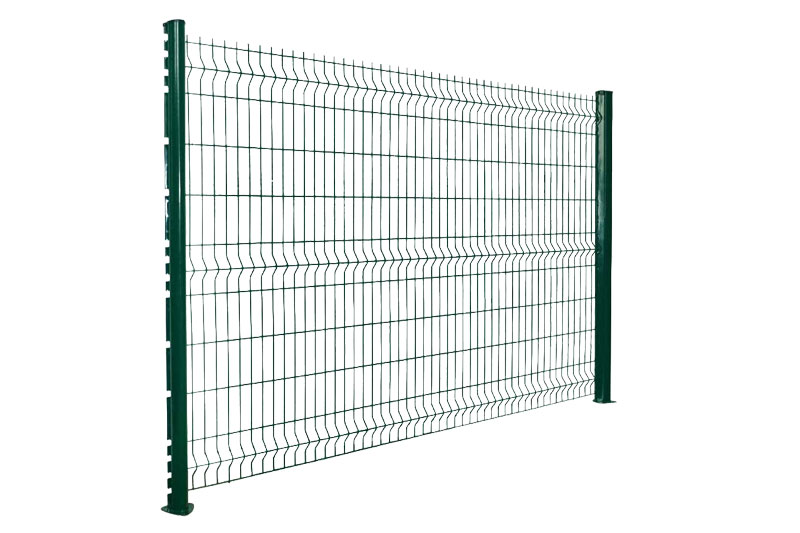

Curvy welded fence, also known as 3D security fence, is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction. It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence. Generally, the number of V-shaped curves varies as the height of welded wire mesh varies. Its attractive appearance, rigid structure and excellent visibility make it become a popular security fence that is widely used in railways, airports, schools, factories, residential areas, gardens, parks, sports stadiums, etc.

(1) Durable

(2) Long Life

(3) high bearing capacity

(4) rust resistance.

(5) high elongation.

(6) Good softness and flexibility, can be bent to various shapes.

Specifications

Mesh Opening

Wire Thickness

Panel Width

Panel Height

Number of Folds

Post Type

50x100mm
50x150mm
50x200mm
55x200mm
75x150mm
etc.

3.0mm
or
3.5mm
or
4.0mm
or
4.5mm
or
5.0mm

2.0m
or
2.50m
or
2.9m

630mm

2

  Round Post
  48x1.5/2.0mm
  60x1.5/2.0mm

Square Post(SHS)
50X50x1.5/2.0mm
60x60x1.5/2.0mm
80x80x1.5/2.0mm

Rectangular Post
      (RHS)
40x60x1.5/2.0mm
40x80x1.5/2.0mm
60x80x1.5/2.0mm
80x100x1.5/2.0mm

830mm

2

1030mm

2

1230mm

2

1430mm

2

1530mm

3

1630mm

3

1730mm

3

1830mm

3

1930mm

3

2030mm

4

2230mm

4

2430mm

4



Technology

Specification of 3D Fence

Mesh Opening

50×100mm;50×150mm;50×200mm;55×200mm;75×150mm  etc.

Wire Thickness

3.0mm;3.5mm;4.0mm;4.50mm;5.00mm

Panel Width

2.0m;2.50m;2.9m

Panel Height

830
mm

1030
mm

1430
mm

1630
mm

1830
mm

193
0m
m

2030
mm

223
0mm

243
0m
m

Number of Folds

2

2

2

3

3

3

4

4

4

Post Type


Round Post
48×1.5/2.0mm
60×1.5/2.0mm

Square Post(SHS)
50X50×1.5/2.0mm
60×60×1.5/2.0mm
80×80×1.5/2.0mm

Rectangular
Post(RHS)
40×60×1.5/2.0mm
40×80×1.5/2.0mm
60×80×1.5/2.0mm
80×100×1.5/2.0mm

Surface treatment

Hot dipped galvanized,galvanized +powder coated,galvanized+PVC
coated

Color

Green、Gray、Black、White or Custom Color

Remark

We could according your requirement custom if above specification is
not satisfied with you.



Application

Curvy welded fence is commonly used for boundary demarcation, security, and decorative purposes in residential, commercial, and industrial settings due to its aesthetically pleasing curved design and robust welded construction.
