welded mesh

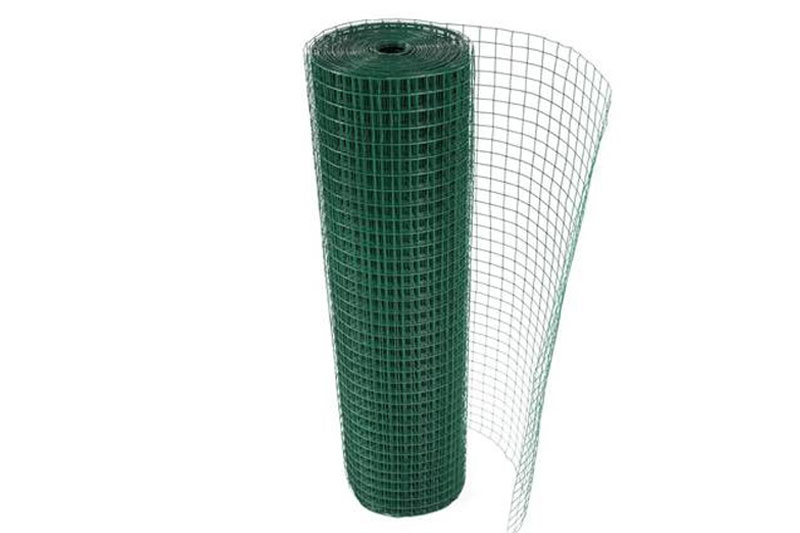

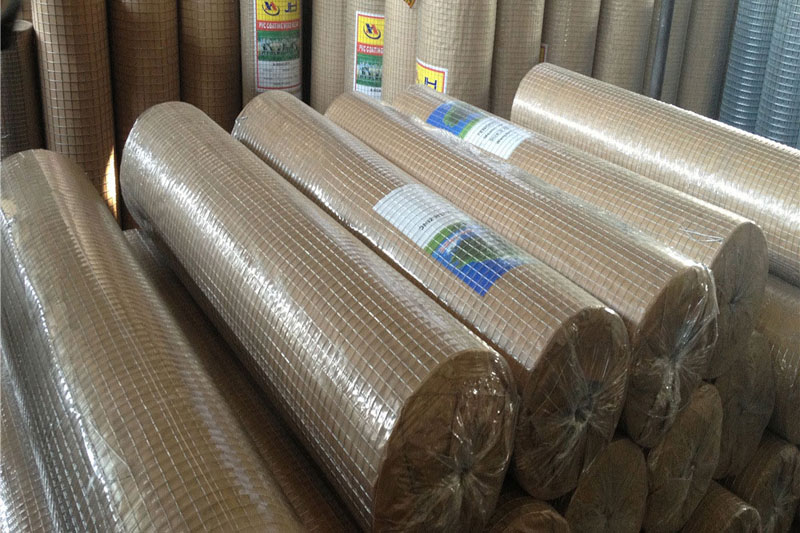

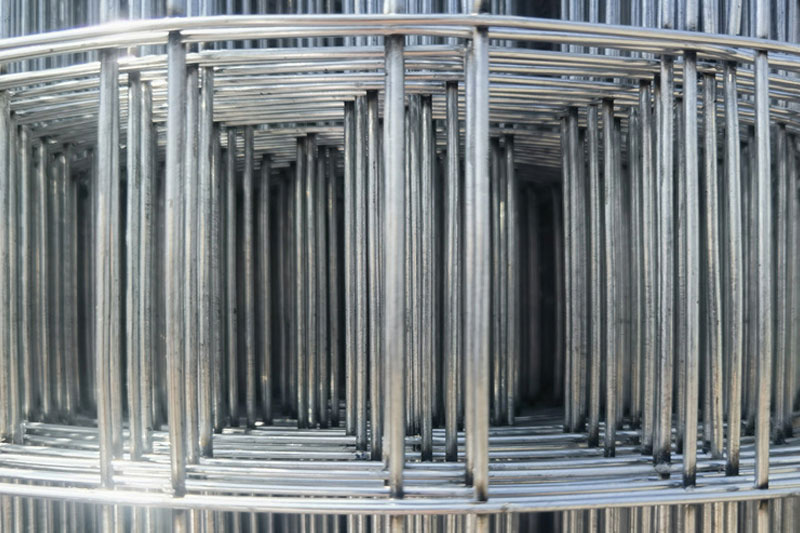

Welded wire mesh rolls are welded with high-quality low-carbon steel wires, and then surface treated by electro galvanizing, hot-dip galvanizing, PVC coating, etc. As one of the most widely used meshes, welded wire mesh roll is easy to install and can be used as highway enclosure mesh, field fences, community guardrails, various isolation meshes, etc.
| Opening | Wire Diameter Bwg | |
| In inch | In mm | |
| 1/4"x 1/4" | 6.4x 6.4 | 22,23,24 |
| 3/8"x 3/8" | 10.6x10.6 | 19,20,21,22 |
| 1/2"x 1/2" | 12.7 x 12.7 | 16,17,18,19,20,21,22,23 |
| 5/8"x5/8 | 16x16 | 18,19,20,21 |
| 3/4"x3/4" | 19.1x19.1 | 16,17,18,19,20,21 |
| 1"x 1/2" | 25.4 x12.7 | 16,17,18,19,20,21 |
| 1-1/2"x1-1/2" | 38x38 | 14,15,16,17,18,19 |
| 1"x 2" | 25.4x50.8 | 14,15,16 |
| 2"x 2" | 50.8 x50.8 | 12,13,14,15 |
| 2"x 4" | 50.8x 101.6 | |
| 4"x4" | 101.6 x 101.6 | |
| 4x 6" | 101.6 x 152.4 | |
| 6"x6" | 152.4x 152.4 | |
| 6"x 8" | 152.4x203.2 | 12,13,14 |
| Width:0.4m-2m Length:5m-50m | ||
| Special size and specification can be customized. | ||
